Hurlbut Amusement
Company
7860 Western Ave.
Buena Park, CA 90260
714/523-1060
|
|

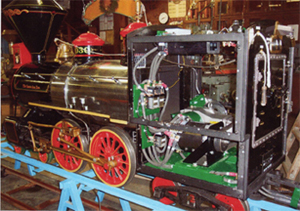

Click the photo for a larger image
|

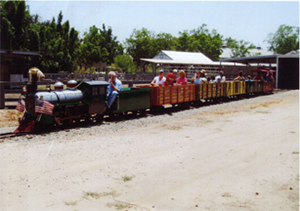

| Installation |
|
Santa
Ana Zoo
Santa Ana, CA |
| Specifications |
|
| Track:
|
21
GA |
| Height |
58" |
| Width |
30.5" |
| Wheels: |
16” dia. |
| Cars:
|
6 total |
| Loaded weight: |
11,500 lbs. |
| Top
speed on level: |
6.2
mph |
| Max. grade: |
32% |
| Max.
speed @ 2%: |
5.4
mph |
| Acceleration: |
0-6.2 mph in 4.9 sec. |
| Run
time/cycle: |
10-12
hrs. |
| Recharge time: |
< 8 hrs.
|
| System
Hardware |
| Pack
Voltage: |
72
vdc |
| Battery no./type: |
12 ea. #L16 350 A-hrs |
| Battery
weight: |
1500
lbs. |
| Motor: |
ADC #A00-4009
36-72V, 6 hp c/d |
| Controller: |
Curtis
#1209-6402 36-72V48-72V, 400A |
| Charger: |
Zivan #NG-5 |
| Throttle: |
PRO-4
inline joystick |
| Braking: |
Hydraulic & electronic
plugging |
| Safeties: |
Fuses
Circuit breaker
Main contactor
RPM limiter
Charger interlock
Reverse speed limiting |
